GARAGE DOOR OPENER WITH TELEGRAM
-------------------------------------------------

A. Masalah

Setiap Project sudah pasti berawal dari sebuah masalah yang akan kami coba selesaikan. Masalah yang kami hadapi berawal dari:

• Masih harus turun dari mobil untuk membuka pintu garasi?
• Atau harus menelpon orang rumah untuk membuka pintu garasi?


B. Solusi

Solusi yang kami tawarkan yaitu Gerbang yang bisa di buka dengan aplikasi telegram. atau kamu sebut dengan “Garage Door Opener with Telegram”

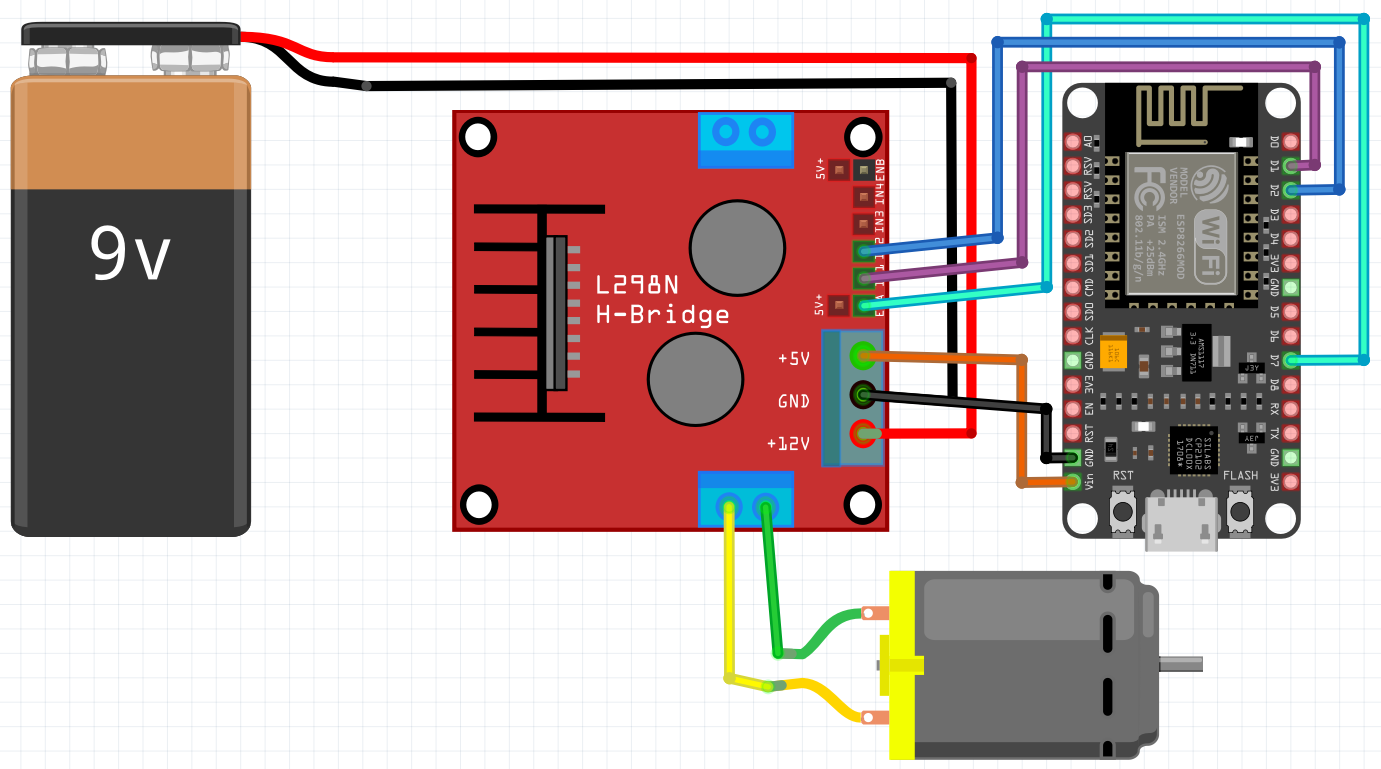

C. Wiring Diagram

Pada project kami meggunakan beberapa Komponen atau Modul diantaranya:

1. NodeMCU ESP8266 Lolin
2. Baterai 9 Volt
3. Motor DC RS-545
4. Motor Driver L298N
5. Kabel Jumper

untuk lebih jelas pin nya kita jabarkan sebagai berikut:

• ENA >>> D7
• IN1 >>> D1
• IN2 >>> D2
• VCC sesuaikan
• Ground sesuaikan

D. Code Program

#ifdef ESP32

//#include <WiFi.h>

#else

#include <ESP8266WiFi.h>

#endif



#include <WiFiClientSecure.h>

#include <UniversalTelegramBot.h>   // Universal Telegram Bot Library written by Brian Lough: https://github.com/witnessmenow/Universal-Arduino-Telegram-Bot

#include <ArduinoJson.h>



// Connect NodeMCU to Wifi

const char* ssid = "POCO Salman"; //

const char* password = "12345678"; //09812374



// Initialize Telegram BOT (Get from Botfather)

#define BOTtoken "5570617795:AAHW_Onvzr4PPwe1VWwixtDGu-l9yqAoh6o"



// Initialize BotID (Get from myidbot)

#define CHAT_ID "888564739" //888564739 //897041904



#ifdef ESP8266

X509List cert(TELEGRAM_CERTIFICATE_ROOT);

#endif



WiFiClientSecure client;

UniversalTelegramBot bot(BOTtoken, client);



// Checks for new messages every 1 second.

int botRequestDelay = 1000;

unsigned long lastTimeBotRan;



int ENA = D7;

int IN1 = D1;

int IN2 = D2;



/* Untuk ESP32

  int ENA = 21;  //D21

  int IN1 = 22;  //D22

  int IN2 = 23;  //D23

*/

String statee = "OPEN";



// Handle what happens when you receive new messages

void handleNewMessages(int numNewMessages) {

  Serial.println("handleNewMessages");

  Serial.println(String(numNewMessages));



  for (int i = 0; i < numNewMessages; i++) {

    // Chat id of the requester

    String chat_id = String(bot.messages[i].chat_id);

    if (chat_id != CHAT_ID) {

      bot.sendMessage(chat_id, "Unauthorized user", "");

      continue;

    }



    // Print the received message

    String text = bot.messages[i].text;

    Serial.println(text);



    String from_name = bot.messages[i].from_name;



    if (text == "/start") {

      String welcome = "Welcome, " + from_name + ".\n";

      welcome += "Use the following commands to control your Garage Door.\n\n";

      welcome += "/open_Gate to OPEN THE GARAGE DOOR \n";

      welcome += "/close_Gate to CLOSE THE GARAGE DOOR \n";

      welcome += "/state to request current GPIO state \n";

      bot.sendMessage(chat_id, welcome, "");

    }



    if (text == "/open_Gate") {

      bot.sendMessage(chat_id, "GARAGE DOOR state is OPEN \n /close_Gate to CLOSE THE GARAGE DOOR", "");

      // Garage Open Now

      analogWrite(ENA, 220);

      digitalWrite(IN1, HIGH);

      digitalWrite(IN2, LOW);

      delay(220);



      //Stop the MotorDC

      digitalWrite(IN1, LOW);

      digitalWrite(IN2, LOW);



      statee = "OPEN";

      bot.sendMessage(chat_id, "status: " + statee, "");

    }



    if (text == "/close_Gate") {

      bot.sendMessage(chat_id, "GARAGE DOOR state is CLOSE \n /open_Gate to OPEN THE GARAGE DOOR", "");

      // Garage Close Now

      analogWrite(ENA, 220);

      digitalWrite(IN1, LOW);

      digitalWrite(IN2, HIGH);

      delay(220);



      //Stop the MotorDC

      digitalWrite(IN1, LOW);

      digitalWrite(IN2, LOW);



      statee = "CLOSE";

      bot.sendMessage(chat_id, "status: " + statee, "");

    }



    if (text == "/state") {

      bot.sendMessage(chat_id, "GARAGE DOOR is " + statee, "");

    }

  }

}



void setup() {

  Serial.begin(115200);



#ifdef ESP8266

  configTime(0, 0, "pool.ntp.org");      // get UTC time via NTP

  client.setTrustAnchors(&cert); // Add root certificate for api.telegram.org

#endif



  // Connect to Wi-Fi

  WiFi.mode(WIFI_STA);

  WiFi.begin(ssid, password);

#ifdef ESP32

  client.setCACert(TELEGRAM_CERTIFICATE_ROOT); // Add root certificate for api.telegram.org

#endif

  while (WiFi.status() != WL_CONNECTED) {

    delay(1000);

    Serial.println("Connecting to WiFi..");

  }

  // Print ESP32 Local IP Address

  Serial.println(WiFi.localIP());



  //DeklarasiPIN

  pinMode(ENA, OUTPUT);

  pinMode(IN1, OUTPUT);

  pinMode(IN2, OUTPUT);

}



void loop() {

  if (millis() > lastTimeBotRan + botRequestDelay)  {

    int numNewMessages = bot.getUpdates(bot.last_message_received + 1);



    while (numNewMessages) {

      Serial.println("got response");

      handleNewMessages(numNewMessages);

      numNewMessages = bot.getUpdates(bot.last_message_received + 1);

    }

    lastTimeBotRan = millis();

  }

}

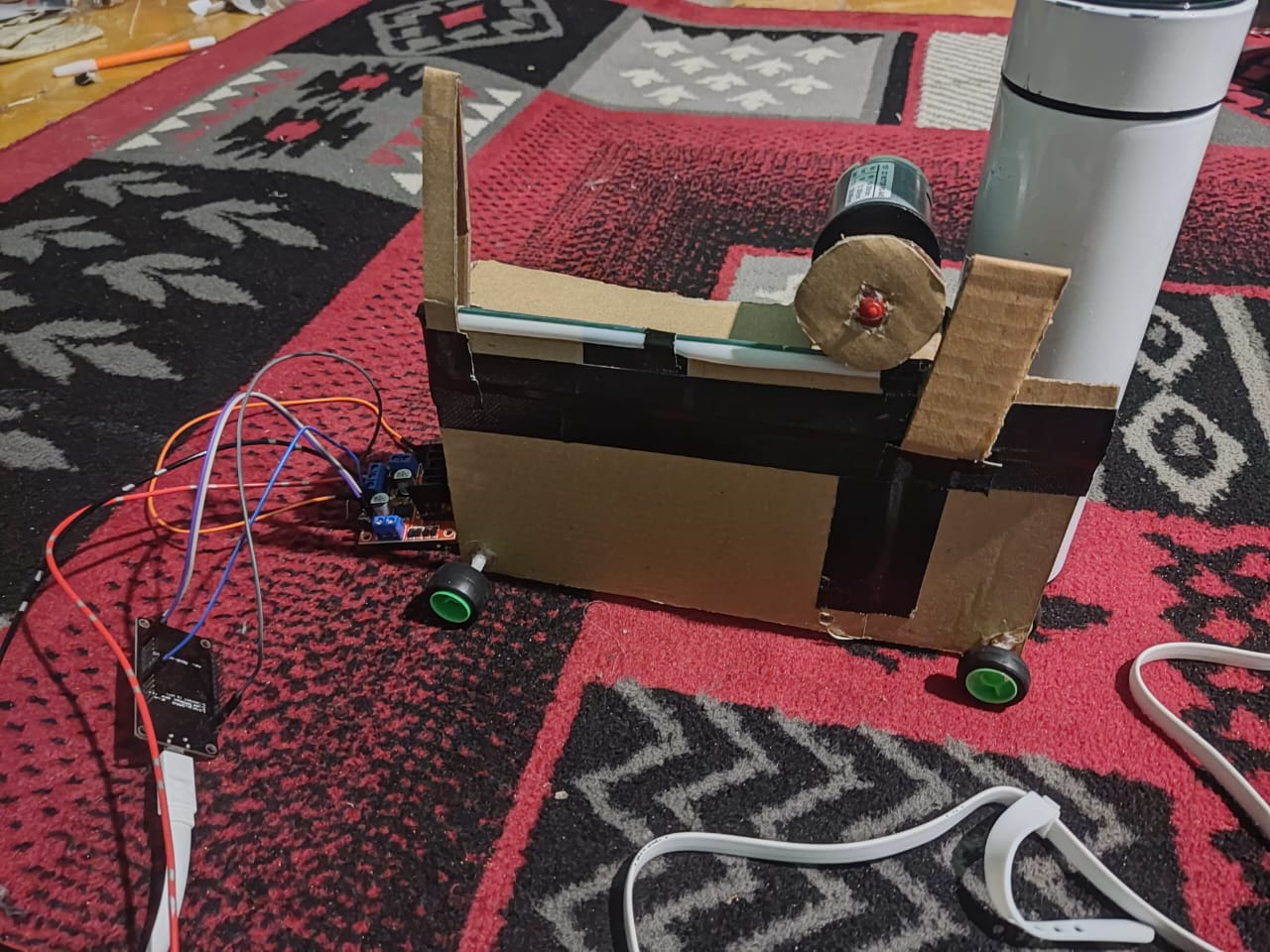

E. Full Prototype Gerbang

F. Uji Coba
